MongoDB分片迁移原理与源码

move chunk

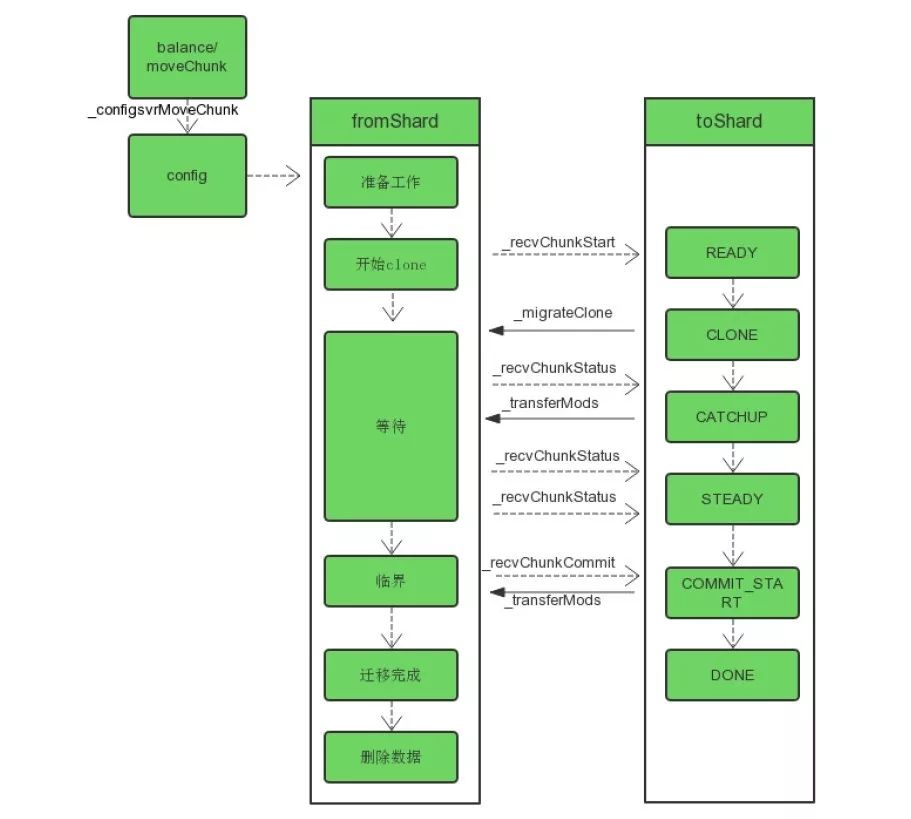

moveChunk 是一个比较复杂的动作, 大致过程如下：

基于对应一开始介绍的块迁移流程

执行moveChunk有一些参数，比如在_moveChunks调用MigrationManager::executeMigrationsForAutoBalance()时，

balancerConfig->getSecondaryThrottle()，返回的为_secondaryThrottle: 变量，true 表示 balancer 插入数据时，至少等待一个 secondary 节点回复；false 表示不等待写到 secondary 节点；也可以直接设置为 write concern ，则迁移时使用这个 write concern . 3.2 版本默认 true, 3.4 开始版本默认 false。

balancerConfig->waitForDelete()，返回的为waitForDelete，迁移一个 chunk 数据以后，是否同步等待数据删除完毕；默认为 false , 由一个单独的线程异步删除孤儿数据。

config服务器

int Balancer::_moveChunks(OperationContext* opCtx,
                          const BalancerChunkSelectionPolicy::MigrateInfoVector& candidateChunks) {
    auto migrationStatuses =
            _migrationManager.executeMigrationsForAutoBalance(opCtx,
                                                              candidateChunks,
                                                              balancerConfig->getMaxChunkSizeBytes(),
                                                              balancerConfig->getSecondaryThrottle(),
                                                              balancerConfig->waitForDelete());

}

executeMigrationsForAutoBalance()函数会将所有需要迁移的块信息(from shard, to shard, chunk)信息构造一个块迁移任务请求发送给from shard，然后由from shard执行后续的move chunk流程。

MigrationStatuses MigrationManager::executeMigrationsForAutoBalance(
                                            OperationContext* opCtx,
                                            const vector<MigrateInfo>& migrateInfos,
                                            uint64_t maxChunkSizeBytes,
                                            const MigrationSecondaryThrottleOptions& secondaryThrottle,
                                            bool waitForDelete) {
    //将每一个需要处理的块迁移操作分别创建迁移任务请求发送到from shard
    for (const auto& migrateInfo : migrateInfos) {
        //向config.migrations中写入一个文档，防止此迁移必须由平衡器恢复。如果块已经在移动，则迁移下一个。
        auto statusWithScopedMigrationRequest =
            ScopedMigrationRequest::writeMigration(opCtx, migrateInfo, waitForDelete);
        if (!statusWithScopedMigrationRequest.isOK()) {
            migrationStatuses.emplace(migrateInfo.getName(),
                                      std::move(statusWithScopedMigrationRequest.getStatus()));
            continue;
        }
        scopedMigrationRequests.emplace(migrateInfo.getName(),
                                        std::move(statusWithScopedMigrationRequest.getValue()));
        //将一个块迁移操作加入到调度
        responses.emplace_back(
            _schedule(opCtx, migrateInfo, maxChunkSizeBytes, secondaryThrottle, waitForDelete),
            migrateInfo);
    }

    //等待所有的迁移任务结束，更新
    for (auto& response : responses) {
        //......
    }
}

之后，会创建一个远程调用命令给from shard，去触发迁移流程

shared_ptr<Notification<RemoteCommandResponse>> MigrationManager::_schedule(
    OperationContext* opCtx,
    const MigrateInfo& migrateInfo,
    uint64_t maxChunkSizeBytes,
    const MigrationSecondaryThrottleOptions& secondaryThrottle,
    bool waitForDelete) {
    //......

    //构造"moveChunk"命令
    BSONObjBuilder builder;
    MoveChunkRequest::appendAsCommand(
        &builder,
        nss,
        migrateInfo.version,
        repl::ReplicationCoordinator::get(opCtx)->getConfig().getConnectionString(),
        migrateInfo.from,
        migrateInfo.to,
        ChunkRange(migrateInfo.minKey, migrateInfo.maxKey),
        maxChunkSizeBytes,
        secondaryThrottle,
        waitForDelete);

    Migration migration(nss, builder.obj());

    //发送到fromHostStatus.getValue()对应的from shard执行该moveChunk操作。
    _schedule(lock, opCtx, fromHostStatus.getValue(), std::move(migration));
}

至此，后续的迁移任务就由from shard和to shard来执行了

from shard

迁移任务由from shard执行moveChunk命令，来完成迁移。

class MoveChunkCommand : public BasicCommand {
public:
    MoveChunkCommand() : BasicCommand("moveChunk") {}

    bool run(OperationContext* opCtx,
             const std::string& dbname,
             const BSONObj& cmdObj,
             BSONObjBuilder& result) override {
        _runImpl(opCtx, moveChunkRequest);
    }
}

from端迁移状态机。此对象必须由单个线程创建和拥有，该线程控制其生存期，不应该跨线程传递。除非明确指出它的方法不能被一个以上的线程调用，也不能在持有任何锁时调用。

工作流程如下:

• 获取即将移动数据块的集合的分布式锁。
• 在堆栈上实例化一个MigrationSourceManager。这将快照最新的收集元数据，由于分布式收集锁，这些元数据应该保持稳定。
• 调用startClone启动块内容的后台克隆。这将执行复制子系统对克隆程序的必要注册，并开始监听文档更改，同时响应来自接收者的数据获取请求。
• 调用awaitUntilCriticalSectionIsAppropriate以等待克隆过程充分赶上，所以我们不会保持服务器在只读状态太长时间。
• 调用enterCriticalSection使碎片进入“只读”模式，而最新的更改将由to shard处理完毕。
• 调用commitDonateChunk将此次迁移结果提交到config服务器，并保持只读(临界区)模式。

几个阶段的状态为：
enum State { kCreated, kCloning, kCloneCaughtUp, kCriticalSection, kCloneCompleted, kDone };

static void _runImpl(OperationContext* opCtx, const MoveChunkRequest& moveChunkRequest) {
    //根据config传过来的_secondaryThrottle来处理是否插入数据时，至少等待一个 secondary 节点回复
    const auto writeConcernForRangeDeleter =
        uassertStatusOK(ChunkMoveWriteConcernOptions::getEffectiveWriteConcern(
            opCtx, moveChunkRequest.getSecondaryThrottle()));

    // Resolve the donor and recipient shards and their connection string
    auto const shardRegistry = Grid::get(opCtx)->shardRegistry();

    //获取from shard的连接串
    const auto donorConnStr =
        uassertStatusOK(shardRegistry->getShard(opCtx, moveChunkRequest.getFromShardId()))
            ->getConnString();
    //获取to shard的连接信息
    const auto recipientHost = uassertStatusOK([&] {
        auto recipientShard =
            uassertStatusOK(shardRegistry->getShard(opCtx, moveChunkRequest.getToShardId()));

        return recipientShard->getTargeter()->findHostNoWait(
            ReadPreferenceSetting{ReadPreference::PrimaryOnly});
    }());


    moveTimingHelper.done(1);
    MONGO_FAIL_POINT_PAUSE_WHILE_SET(moveChunkHangAtStep1);

    /*使用指定的迁移参数实例化新的迁移源管理器。必须使用预先获得的分布式锁来调用(而不是断言)。加载最新的集合元数据并将其用作起点。由于分布式锁，集合的元数据不会进一步更改。*/
    //kCreated
    MigrationSourceManager migrationSourceManager(
        opCtx, moveChunkRequest, donorConnStr, recipientHost);

    moveTimingHelper.done(2);
    MONGO_FAIL_POINT_PAUSE_WHILE_SET(moveChunkHangAtStep2);

    //kCloning
    uassertStatusOKWithWarning(migrationSourceManager.startClone(opCtx));
    moveTimingHelper.done(3);
    MONGO_FAIL_POINT_PAUSE_WHILE_SET(moveChunkHangAtStep3);

    //kCloneCaughtUp
    uassertStatusOKWithWarning(migrationSourceManager.awaitToCatchUp(opCtx));
    moveTimingHelper.done(4);
    MONGO_FAIL_POINT_PAUSE_WHILE_SET(moveChunkHangAtStep4);

    //kCriticalSection
    uassertStatusOKWithWarning(migrationSourceManager.enterCriticalSection(opCtx));
    uassertStatusOKWithWarning(migrationSourceManager.commitChunkOnRecipient(opCtx));
    moveTimingHelper.done(5);
    MONGO_FAIL_POINT_PAUSE_WHILE_SET(moveChunkHangAtStep5);

    //kCloneCompleted
    uassertStatusOKWithWarning(migrationSourceManager.commitChunkMetadataOnConfig(opCtx));
    moveTimingHelper.done(6);
    MONGO_FAIL_POINT_PAUSE_WHILE_SET(moveChunkHangAtStep6);
}

Status MigrationSourceManager::startClone(OperationContext* opCtx) {
    /*将元数据管理器注册到集合分片状态表示正在迁移该集合上的块。对于主动迁移，写操作要求克隆程序在场，以便跟踪需要传输给接收方的块的更改。*/
    _cloneDriver = stdx::make_unique<MigrationChunkClonerSourceLegacy>(
            _args, metadata->getKeyPattern(), _donorConnStr, _recipientHost);

    Status startCloneStatus = _cloneDriver->startClone(opCtx);

    _state = kCloning;
}

Status MigrationChunkClonerSourceLegacy::startClone(OperationContext* opCtx) {
    auto const replCoord = repl::ReplicationCoordinator::get(opCtx);
    if (replCoord->getReplicationMode() == repl::ReplicationCoordinator::modeReplSet) {
        _sessionCatalogSource =
            stdx::make_unique<SessionCatalogMigrationSource>(opCtx, _args.getNss());

        //如果有要迁移的oplog条目，则启动会话迁移源。
        _sessionCatalogSource->fetchNextOplog(opCtx);
    }

    //加载当前可用文档的id
    auto storeCurrentLocsStatus = _storeCurrentLocs(opCtx);
    if (!storeCurrentLocsStatus.isOK()) {
        return storeCurrentLocsStatus;
    }

    //告诉接收碎片开始克隆，构造"_recvChunkStart"请求发送到to shard
    BSONObjBuilder cmdBuilder;
    StartChunkCloneRequest::appendAsCommand(&cmdBuilder,
                                            _args.getNss(),
                                            _sessionId,
                                            _donorConnStr,
                                            _args.getFromShardId(),
                                            _args.getToShardId(),
                                            _args.getMinKey(),
                                            _args.getMaxKey(),
                                            _shardKeyPattern.toBSON(),
                                            _args.getSecondaryThrottle());

    auto startChunkCloneResponseStatus = _callRecipient(cmdBuilder.obj());
}

from shard发送完“_recvChunkStart”命令后，进入kCloning状态，随即进入awaitToCatchUp函数，一直发送"_recvChunkStatus"命令到to shard，等待to shard进入"steady"状态，再进行下一步；或失败；或超时。

Status MigrationSourceManager::awaitToCatchUp(OperationContext* opCtx) {
    // Block until the cloner deems it appropriate to enter the critical section.
    Status catchUpStatus = _cloneDriver->awaitUntilCriticalSectionIsAppropriate(
        opCtx, kMaxWaitToEnterCriticalSectionTimeout);
    if (!catchUpStatus.isOK()) {
        return catchUpStatus;
    }

    _state = kCloneCaughtUp;
}

Status MigrationChunkClonerSourceLegacy::awaitUntilCriticalSectionIsAppropriate(
    while ((Date_t::now() - startTime) < maxTimeToWait) {
        auto responseStatus = _callRecipient(
            createRequestWithSessionId(kRecvChunkStatus, _args.getNss(), _sessionId, true));
        const BSONObj& res = responseStatus.getValue();
        if (res["state"].String() == "steady") {
            if (cloneLocsRemaining != 0) {
                return {ErrorCodes::OperationIncomplete,
                        str::stream() << "Unable to enter critical section because the recipient "
                                         "shard thinks all data is cloned while there are still "
                                      << cloneLocsRemaining
                                      << " documents remaining"};
            }

            return Status::OK();
        }
    }
}

在to shard进行了READY, CLONE, CATCHUP, STEADY状态变化后，进入steady后，表明to shard完成了数据块上数据的复制，以及完成了复制期间新写的数据的同步，则from shard就可以进入下一个阶段"kCriticalSection"了。

Status MigrationSourceManager::enterCriticalSection(OperationContext* opCtx) {
    //表明当前分片上的该集合进入X锁阶段，这将导致该集合不能再进行任何写操作，直到chunk迁移提交
    _critSec.emplace(opCtx, _args.getNss());

    _state = kCriticalSection;
}

进入不可写阶段后，from shard会发送"_recvChunkCommit"命令，告知to shard去获取最后一次的修改并提交整个迁移过程。

Status MigrationSourceManager::commitChunkOnRecipient(OperationContext* opCtx) {
    //发送"_recvChunkCommit"命令
    auto commitCloneStatus = _cloneDriver->commitClone(opCtx);

    _state = kCloneCompleted;
}

收到to shard正确提交的回复后，from shard也将所有的修改结果提交到config服务器

Status MigrationSourceManager::commitChunkMetadataOnConfig(OperationContext* opCtx) {
    //构造"_configsvrCommitChunkMigration"命令，提交相关数据给config服务器

    BSONObjBuilder builder;
    {
        ChunkType migratedChunkType;
        migratedChunkType.setMin(_args.getMinKey());
        migratedChunkType.setMax(_args.getMaxKey());

        CommitChunkMigrationRequest::appendAsCommand(
            &builder,
            getNss(),
            _args.getFromShardId(),
            _args.getToShardId(),
            migratedChunkType,
            controlChunkType,
            metadata->getCollVersion(),
            LogicalClock::get(opCtx)->getClusterTime().asTimestamp());

        builder.append(kWriteConcernField, kMajorityWriteConcern.toBSON());
    }

    //保持X锁
    _critSec->enterCommitPhase();

    //发送命令给config服务器
    auto commitChunkMigrationResponse =
        Grid::get(opCtx)->shardRegistry()->getConfigShard()->runCommandWithFixedRetryAttempts(
            opCtx,
            ReadPreferenceSetting{ReadPreference::PrimaryOnly},
            "admin",
            builder.obj(),
            Shard::RetryPolicy::kIdempotent);

    //提交成功，释放X锁
    _cleanup(opCtx);

    //异步删除。根据上边的介绍，是否异步删除是可配置的。通过调用cleanUpRange来实现删除数据，如果异步删除，调用完毕就进行下一个chunk的迁移了
    auto notification = [&] {
        auto const whenToClean = _args.getWaitForDelete() ? CollectionShardingRuntime::kNow
                                                          : CollectionShardingRuntime::kDelayed;
        UninterruptibleLockGuard noInterrupt(opCtx->lockState());
        AutoGetCollection autoColl(opCtx, getNss(), MODE_IS);
        return CollectionShardingRuntime::get(opCtx, getNss())->cleanUpRange(range, whenToClean);
    }();
}

config服务器要进行最后数据的提交确认.

"_configsvrCommitChunkMigration"命令获取正在迁移的块(“migratedChunk”)，并为其生成一个新版本，该版本连同它的新碎片位置(“toShard”)一起写入到块集合中。它还接受一个控制块(“controlChunk”)并为其分配一个新版本，以便源碎片(“fromShard”)碎片的shardVersion将增加。如果没有控制块，那么正在迁移的块就是源碎片惟一剩下的块。
新的块版本是通过查询集合的最高块版本生成的，然后对已迁移块和控制块的主值进行递增，并将已迁移块的次值设置为0，控制块设置为1。在生成新块版本和写入块集合的过程中，将持有一个全局独占锁，这样就不会产生块集合。这确保生成的ChunkVersions是严格单调递增的——第二个进程在第一个进程写完它生成的最高块版本之前，将无法查询最大块版本。

class ConfigSvrCommitChunkMigrationCommand : public BasicCommand {
public:
    ConfigSvrCommitChunkMigrationCommand() : BasicCommand("_configsvrCommitChunkMigration") {}

    bool run(OperationContext* opCtx,
             const std::string& dbName,
             const BSONObj& cmdObj,
             BSONObjBuilder& result) override {

        // Set the operation context read concern level to local for reads into the config database.
        repl::ReadConcernArgs::get(opCtx) =
            repl::ReadConcernArgs(repl::ReadConcernLevel::kLocalReadConcern);

        const NamespaceString nss = NamespaceString(parseNs(dbName, cmdObj));

        auto commitRequest =
            uassertStatusOK(CommitChunkMigrationRequest::createFromCommand(nss, cmdObj));

        StatusWith<BSONObj> response = ShardingCatalogManager::get(opCtx)->commitChunkMigration(
            opCtx,
            nss,
            commitRequest.getMigratedChunk(),
            commitRequest.getCollectionEpoch(),
            commitRequest.getFromShard(),
            commitRequest.getToShard(),
            commitRequest.getValidAfter());
        uassertStatusOK(response.getStatus());
        result.appendElements(response.getValue());
        return true;
    }
}

to shard

然后来到to shard收到"_recvChunkStart"命令请求，然后to shard开始复制数据。

to shard的整个迁移过程包含如下阶段：enum State { READY, CLONE, CATCHUP, STEADY, COMMIT_START, DONE, FAIL, ABORT };

class RecvChunkStartCommand : public ErrmsgCommandDeprecated {
public:
    RecvChunkStartCommand() : ErrmsgCommandDeprecated("_recvChunkStart") {}

    bool errmsgRun(OperationContext* opCtx,
                   const std::string& dbname,
                   const BSONObj& cmdObj,
                   std::string& errmsg,
                   BSONObjBuilder& result) override {
        //......
        //进入从源端拷贝数据的准备工作，以及实施后续的所有迁移操作
        uassertStatusOK(
            MigrationDestinationManager::get(opCtx)->start(opCtx,
                                                           nss,
                                                           std::move(scopedReceiveChunk),
                                                           cloneRequest,
                                                           shardVersion.epoch(),
                                                           writeConcern));

        result.appendBool("started", true);
        return true;

    }
}

Status MigrationDestinationManager::start(OperationContext* opCtx,
                                          const NamespaceString& nss,
                                          ScopedReceiveChunk scopedReceiveChunk,
                                          const StartChunkCloneRequest cloneRequest,
                                          const OID& epoch,
                                          const WriteConcernOptions& writeConcern) {
    //to shard 进行READY状态，即进行迁移准备工作
    _state = READY;

    //......
    //单独起一个线程去负责后续的处理
    _migrateThreadHandle = stdx::thread([this]() { _migrateThread(); });
}

void MigrationDestinationManager::_migrateThread() {
    _migrateDriver(opCtx.get());
}

_migrateDriver()函数真正进行to shard clone数据的若干步骤，包括CLONE、CATCHUP、STEADY、COMMIT_START，一直到DONE。这阶段to shard要创建集合和索引（如果没有），从from shard读数据，insert到本地，同步这期间的写操作等。

void MigrationDestinationManager::_migrateDriver(OperationContext* opCtx) {
    {
        //to shard开始之后的第一步，下边的函数内包含三个操作：
        // 0. Get the collection indexes and options from the donor shard.
        //从from shard读取迁移集合的索引信息以及集合的配置项以及uuid信息

        // 1. Create the collection (if it doesn't already exist) and create any indexes we are missing (auto-heal indexes).
        //如果to shard不存在该集合，则创建该集合；创建to shard上缺失的索引
        cloneCollectionIndexesAndOptions(opCtx, _nss, _fromShard);

        timing.done(1);
        MONGO_FAIL_POINT_PAUSE_WHILE_SET(migrateThreadHangAtStep1);
    }

    {
        // 2. Synchronously delete any data which might have been left orphaned in the range being moved, and wait for completion
        //同步删除可能在被移动的范围内被孤立的任何数据，并等待完成
        //将“min”和“max”之间的数据块作为数据迁移到其中的一个范围，以保护它不受清理孤立数据的单独命令的影响。但是，首先，它计划删除范围内的任何文档，因此必须在迁移任何新文档之前看到该过程已经完成。
        const ChunkRange footprint(_min, _max);
        auto notification = _notePending(opCtx, footprint);


        // Wait for any other, overlapping queued deletions to drain
        auto status = CollectionShardingRuntime::waitForClean(opCtx, _nss, _epoch, footprint);

        timing.done(2);
        MONGO_FAIL_POINT_PAUSE_WHILE_SET(migrateThreadHangAtStep2);
    }

    {
        // 3. Initial bulk clone
        //进入真正的从from shard拷贝数据的阶段
        setState(CLONE);
        /*在start函数中，会起一个单独的线程去操作迁移过程中的session信息的迁移。包括如下操作：
        1. 从from shard获取包含会话信息的oplog。
        2. 对于每个oplog条目，如果还没有类型“n”，则转换为类型“n”，同时保留可重试写入所需的所有信息。
        3. 还可以为每个oplog条目更新sessionCatalog。
        4. 一旦from shard返回一个空的oplog缓冲区，这意味着它应该进入ReadyToCommit状态并等待提交信号(通过调用finish())。
        5. 调用finish()后，继续尝试从源碎片获取更多的oplog，直到它再次返回空结果。
        6. 等待写入被提交到复制集的大多数。*/
        _sessionMigration->start(opCtx->getServiceContext());

        //下边的操作是从源端读取迁移chunk里的内容的操作，首先构造“_migrateClone”命令
        const BSONObj migrateCloneRequest = createMigrateCloneRequest(_nss, *_sessionId);

        _chunkMarkedPending = true;  // no lock needed, only the migrate thread looks.

        auto assertNotAborted = [&](OperationContext* opCtx) {
            opCtx->checkForInterrupt();
            uassert(50748, "Migration aborted while copying documents", getState() != ABORT);
        };
        //处理从from shard读取到的数据插入到本地的回调函数
        auto insertBatchFn = [&](OperationContext* opCtx, BSONObj arr) {
            int batchNumCloned = 0;
            int batchClonedBytes = 0;

            assertNotAborted(opCtx);

            write_ops::Insert insertOp(_nss);
            insertOp.getWriteCommandBase().setOrdered(true);
            insertOp.setDocuments([&] {
                std::vector<BSONObj> toInsert;
                for (const auto& doc : arr) {
                    BSONObj docToClone = doc.Obj();
                    toInsert.push_back(docToClone);
                    batchNumCloned++;
                    batchClonedBytes += docToClone.objsize();
                }
                return toInsert;
            }());

            const WriteResult reply = performInserts(opCtx, insertOp, true);

            for (unsigned long i = 0; i < reply.results.size(); ++i) {
                uassertStatusOKWithContext(reply.results[i],
                                           str::stream() << "Insert of "
                                                         << redact(insertOp.getDocuments()[i])
                                                         << " failed.");
            }

            {
                stdx::lock_guard<stdx::mutex> statsLock(_mutex);
                _numCloned += batchNumCloned;
                _clonedBytes += batchClonedBytes;
            }
            if (_writeConcern.shouldWaitForOtherNodes()) {
                repl::ReplicationCoordinator::StatusAndDuration replStatus =
                    repl::ReplicationCoordinator::get(opCtx)->awaitReplication(
                        opCtx,
                        repl::ReplClientInfo::forClient(opCtx->getClient()).getLastOp(),
                        _writeConcern);
                if (replStatus.status.code() == ErrorCodes::WriteConcernFailed) {
                    warning() << "secondaryThrottle on, but doc insert timed out; "
                                 "continuing";
                } else {
                    uassertStatusOK(replStatus.status);
                }
            }
        };
        //对from shard执行“_migrateClone”命令，获取from shard数据
        auto fetchBatchFn = [&](OperationContext* opCtx) {
            auto res = uassertStatusOKWithContext(
                fromShard->runCommand(opCtx,
                                      ReadPreferenceSetting(ReadPreference::PrimaryOnly),
                                      "admin",
                                      migrateCloneRequest,
                                      Shard::RetryPolicy::kIdempotent),
                "_migrateClone failed: ");

            uassertStatusOKWithContext(Shard::CommandResponse::getEffectiveStatus(res),
                                       "_migrateClone failed: ");

            return res.response;
        };
        //构造一个生产者-消费者的逻辑，通过fetchBatchFn源源不断读取from shard上的数据，然后使用insertBatchFn插入到本地并更新oplog等。直到读取数据完毕。
        cloneDocumentsFromDonor(opCtx, insertBatchFn, fetchBatchFn);

        timing.done(3);
        MONGO_FAIL_POINT_PAUSE_WHILE_SET(migrateThreadHangAtStep3);
    }

    //进入CATCHUP阶段，向from shard发送“_transferMods”命令，获取在上一步迁移数据过程中，发生的数据删除或更新或插入等写变化，同步过来，并等待修改同步到其他节点
    // If running on a replicated system, we'll need to flush the docs we cloned to the secondaries
    repl::OpTime lastOpApplied = repl::ReplClientInfo::forClient(opCtx->getClient()).getLastOp();

    const BSONObj xferModsRequest = createTransferModsRequest(_nss, *_sessionId);

    {
        // 4. Do bulk of mods
        setState(CATCHUP);

        while (true) {
            auto res = uassertStatusOKWithContext(
                fromShard->runCommand(opCtx,
                                      ReadPreferenceSetting(ReadPreference::PrimaryOnly),
                                      "admin",
                                      xferModsRequest,
                                      Shard::RetryPolicy::kIdempotent),
                "_transferMods failed: ");

            uassertStatusOKWithContext(Shard::CommandResponse::getEffectiveStatus(res),
                                       "_transferMods failed: ");

            const auto& mods = res.response;

            if (mods["size"].number() == 0) {
                break;
            }

            //这个函数中，包括对要删除节点的处理，如果有迁移文档被删除，则直接调用删除接口在该shard中删除；如果是insert或update则调用upsert逻辑完成数据更新
            _applyMigrateOp(opCtx, mods, &lastOpApplied);

            //等待所有修改信息都同步到了secondary节点
        }

        timing.done(4);
        MONGO_FAIL_POINT_PAUSE_WHILE_SET(migrateThreadHangAtStep4);
    }

    {
        // Pause to wait for replication. This will prevent us from going into critical section
        // until we're ready.

        log() << "Waiting for replication to catch up before entering critical section";

        auto awaitReplicationResult = repl::ReplicationCoordinator::get(opCtx)->awaitReplication(
            opCtx, lastOpApplied, _writeConcern);
        uassertStatusOKWithContext(awaitReplicationResult.status,
                                   awaitReplicationResult.status.codeString());

        log() << "Chunk data replicated successfully.";
    }

    {
        // 5. Wait for commit
        //进入STEADY状态。进入这个状态之后，from shard在上面介绍过，会一直向to shard发送"_recvChunkStatus"请求，获取to shard的迁移状态，一旦进入了steady阶段，from shard则进入下一步；
        //则此时to shard会继续不断读取from shard相关数据在这阶段的或删除或更新或插入的信息，以及等待接收到来自from shard的下一步命令"_recvChunkCommit"，to shard收到该命令后，会进行最后一次增量写信息获取和处理，进入COMMIT_START阶段，等待数据同步到大多数节点，迁移结束。
        setState(STEADY);

        bool transferAfterCommit = false;
        //等待to shard接收到"_recvChunkCommit"后，进入COMMIT_START状态
        while (getState() == STEADY || getState() == COMMIT_START) {
            opCtx->checkForInterrupt();

            // Make sure we do at least one transfer after recv'ing the commit message. If we
            // aren't sure that at least one transfer happens *after* our state changes to
            // COMMIT_START, there could be mods still on the FROM shard that got logged
            // *after* our _transferMods but *before* the critical section.
            if (getState() == COMMIT_START) {
                transferAfterCommit = true;
            }

            auto res = uassertStatusOKWithContext(
                fromShard->runCommand(opCtx,
                                      ReadPreferenceSetting(ReadPreference::PrimaryOnly),
                                      "admin",
                                      xferModsRequest,
                                      Shard::RetryPolicy::kIdempotent),
                "_transferMods failed in STEADY STATE: ");

            uassertStatusOKWithContext(Shard::CommandResponse::getEffectiveStatus(res),
                                       "_transferMods failed in STEADY STATE: ");

            auto mods = res.response;

            if (mods["size"].number() > 0 && _applyMigrateOp(opCtx, mods, &lastOpApplied)) {
                continue;
            }

            if (getState() == ABORT) {
                log() << "Migration aborted while transferring mods";
                return;
            }

            // We know we're finished when:
            // 1) The from side has told us that it has locked writes (COMMIT_START)
            // 2) We've checked at least one more time for un-transmitted mods
            if (getState() == COMMIT_START && transferAfterCommit == true) {
                if (_flushPendingWrites(opCtx, lastOpApplied)) {
                    break;
                }
            }

            // Only sleep if we aren't committing
            if (getState() == STEADY)
                sleepmillis(10);
        }

        if (getState() == FAIL) {
            _setStateFail("timed out waiting for commit");
            return;
        }

        timing.done(5);
        MONGO_FAIL_POINT_PAUSE_WHILE_SET(migrateThreadHangAtStep5);
    }

    _sessionMigration->join();

    //迁移结束
    setState(DONE);

    timing.done(6);
    MONGO_FAIL_POINT_PAUSE_WHILE_SET(migrateThreadHangAtStep6);

}

from shard执行“_migrateClone”命令时，就是讲符合迁移的文档数据插入到返回结果的"objects"中。

class InitialCloneCommand : public BasicCommand {
public:
    InitialCloneCommand() : BasicCommand("_migrateClone") {}

    bool run(OperationContext* opCtx,
             const std::string&,
             const BSONObj& cmdObj,
             BSONObjBuilder& result) {
        while (!arrBuilder || arrBuilder->arrSize() > arrSizeAtPrevIteration) {
            AutoGetActiveCloner autoCloner(opCtx, migrationSessionId);

            if (!arrBuilder) {
                arrBuilder.emplace(autoCloner.getCloner()->getCloneBatchBufferAllocationSize());
            }

            arrSizeAtPrevIteration = arrBuilder->arrSize();

            uassertStatusOK(autoCloner.getCloner()->nextCloneBatch(
                opCtx, autoCloner.getColl(), arrBuilder.get_ptr()));
        }

        invariant(arrBuilder);
        result.appendArray("objects", arrBuilder->arr());
    }

from shard执行"_transferMods"命令的时候，将迁移过程中，from shard的有写操作的文档的或删除或更新或插入信息返回给to shard。

class TransferModsCommand : public BasicCommand {
public:
    TransferModsCommand() : BasicCommand("_transferMods") {}

    bool run(OperationContext* opCtx,
             const std::string&,
             const BSONObj& cmdObj,
             BSONObjBuilder& result) {
        const MigrationSessionId migrationSessionId(
            uassertStatusOK(MigrationSessionId::extractFromBSON(cmdObj)));

        AutoGetActiveCloner autoCloner(opCtx, migrationSessionId);

        uassertStatusOK(autoCloner.getCloner()->nextModsBatch(opCtx, autoCloner.getDb(), &result));
        return true;
    }

from shard是通过两个list列表"_deleted"和"_reload"来保存迁移过程中，哪些文档有或删除或更新或插入的操作，nextModsBatch即从这两个列表中获得对应文档。

Status MigrationChunkClonerSourceLegacy::nextModsBatch(OperationContext* opCtx,
                                                       Database* db,
                                                       BSONObjBuilder* builder) {
    dassert(opCtx->lockState()->isCollectionLockedForMode(_args.getNss().ns(), MODE_IS));

    stdx::lock_guard<stdx::mutex> sl(_mutex);

    // All clone data must have been drained before starting to fetch the incremental changes
    invariant(_cloneLocs.empty());

    long long docSizeAccumulator = 0;

    //_xfer函数会将需要删除数据的"_id"信息返回即可；而更新或插入的文档则是把整个文档信息返回，在to shard上执行upsert，完整数据更新
    _xfer(opCtx, db, &_deleted, builder, "deleted", &docSizeAccumulator, false);
    _xfer(opCtx, db, &_reload, builder, "reload", &docSizeAccumulator, true);

    builder->append("size", docSizeAccumulator);

    return Status::OK();
}

而from shard是通过如下接口完成对这些文档修改的保存的。以update的数据作为例子。

当有数据更新到该shard的时候，首先判断该数据是否来自于其他shard的迁移数据，如果是，则不记录；如果不是，则进一步判断当前是否在当前迁移任务的chunk范围内，如果是，则保存到"reload"中。

void MigrationChunkClonerSourceLegacy::onUpdateOp(OperationContext* opCtx,
                                                  const BSONObj& updatedDoc,
                                                  const repl::OpTime& opTime,
                                                  const repl::OpTime& prePostImageOpTime) {
    dassert(opCtx->lockState()->isCollectionLockedForMode(_args.getNss().ns(), MODE_IX));

    BSONElement idElement = updatedDoc["_id"];
    if (idElement.eoo()) {
        warning() << "logUpdateOp got a document with no _id field, ignoring updatedDoc: "
                  << redact(updatedDoc);
        return;
    }

    if (!isInRange(updatedDoc, _args.getMinKey(), _args.getMaxKey(), _shardKeyPattern)) {
        return;
    }

    if (opCtx->getTxnNumber()) {
        opCtx->recoveryUnit()->registerChange(
            new LogOpForShardingHandler(this, idElement.wrap(), 'u', opTime, prePostImageOpTime));
    } else {
        opCtx->recoveryUnit()->registerChange(
            new LogOpForShardingHandler(this, idElement.wrap(), 'u', {}, {}));
    }
}

class LogOpForShardingHandler final : public RecoveryUnit::Change {
    void commit(boost::optional<Timestamp>) override {
        switch (_op) {
            case 'd': {
                stdx::lock_guard<stdx::mutex> sl(_cloner->_mutex);
                _cloner->_deleted.push_back(_idObj);
                _cloner->_memoryUsed += _idObj.firstElement().size() + 5;
            } break;

            case 'i':
            case 'u': {
                stdx::lock_guard<stdx::mutex> sl(_cloner->_mutex);
                _cloner->_reload.push_back(_idObj);
                _cloner->_memoryUsed += _idObj.firstElement().size() + 5;
            } break;

            default:
                MONGO_UNREACHABLE;
        }

        if (auto sessionSource = _cloner->_sessionCatalogSource.get()) {
            if (!_prePostImageOpTime.isNull()) {
                sessionSource->notifyNewWriteOpTime(_prePostImageOpTime);
            }

            if (!_opTime.isNull()) {
                sessionSource->notifyNewWriteOpTime(_opTime);
            }
        }
    }
}

收到"_recvChunkCommit"命令后，表明to shard可以进行最后的迁移结果提交了。

class RecvChunkCommitCommand : public BasicCommand {
public:
    RecvChunkCommitCommand() : BasicCommand("_recvChunkCommit") {}

    bool run(OperationContext* opCtx,
             const std::string& dbname,
             const BSONObj& cmdObj,
             BSONObjBuilder& result) override {
        auto const sessionId = uassertStatusOK(MigrationSessionId::extractFromBSON(cmdObj));
        auto const mdm = MigrationDestinationManager::get(opCtx);
        Status const status = mdm->startCommit(sessionId);
        mdm->report(result, opCtx, false);
        if (!status.isOK()) {
            log() << status.reason();
            uassertStatusOK(status);
        }
        return true;
    }
}

Status MigrationDestinationManager::startCommit(const MigrationSessionId& sessionId) {
    _sessionMigration->finish();
    _state = COMMIT_START;
    _stateChangedCV.notify_all();
}

至此，to shard的操作结束，可以接收来自用户对迁移的数据的读写请求了。

未完，待续

参考文档

MongoDB官方文档

孤儿文档是怎样产生的(MongoDB orphaned document)

MongoDB疑难解析：为什么升级之后负载升高了？

由数据迁移至MongoDB导致的数据不一致问题及解决方案
