Unity调用Window窗口
本文提供全流程,中文翻译。
Chinar 坚持将简单的生活方式,带给世人!
(拥有更好的阅读体验 —— 高分辨率用户请根据需求调整网页缩放比例)
|
Chinar —— 心分享、心创新!
助力快速完成 Unity调用 Window api 执行保存/打开操作
为新手节省宝贵的时间,避免采坑!
|
Chinar 教程效果:

全文高清图片,点击即可放大观看 (很多人竟然不知道)
1
File Controller —— 文件控制脚本
晚会儿修改
用来控制打开/保存项目文件
将两个脚本放到项目中,分别绑定2个按钮 打开/保存
ChinarFileController 脚本需要挂载到空物体上
即可正常调用
具体需求,需要自己来定,保存到某个路径下

using UnityEngine;
using System.Runtime.InteropServices;
using System;
public class ChinarFileController : MonoBehaviour
{
public void OpenProject()
{
OpenFileDlg pth = new OpenFileDlg();
pth.structSize = Marshal.SizeOf(pth);
pth.filter = "All files (*.*)|*.*";
pth.file = new string(new char[256]);
pth.maxFile = pth.file.Length;
pth.fileTitle = new string(new char[64]);
pth.maxFileTitle = pth.fileTitle.Length;
pth.initialDir = Application.dataPath.Replace("/", "\\") + "\\Resources";
pth.title = "打开项目";
pth.defExt = "dat";
pth.flags = 0x00080000 | 0x00001000 | 0x00000800 | 0x00000200 | 0x00000008;
if (OpenFileDialog.GetOpenFileName(pth))
{
string filepath = pth.file;
Debug.Log(filepath);
}
}
public void SaveProject()
{
SaveFileDlg pth = new SaveFileDlg();
pth.structSize = Marshal.SizeOf(pth);
pth.filter = "All files (*.*)|*.*";
pth.file = new string(new char[256]);
pth.maxFile = pth.file.Length;
pth.fileTitle = new string(new char[64]);
pth.maxFileTitle = pth.fileTitle.Length;
pth.initialDir = Application.dataPath;
pth.title = "保存项目";
pth.defExt = "dat";
pth.flags = 0x00080000 | 0x00001000 | 0x00000800 | 0x00000200 | 0x00000008;
if (SaveFileDialog.GetSaveFileName(pth))
{
string filepath = pth.file;
Debug.Log(filepath);
}
}
}
2
FileDlog —— 文件日志
无需挂载到空物体上

using System.Runtime.InteropServices;
using System;
[StructLayout(LayoutKind.Sequential, CharSet = CharSet.Auto)]
public class ChinarFileDlog
{
public int structSize = 0;
public IntPtr dlgOwner = IntPtr.Zero;
public IntPtr instance = IntPtr.Zero;
public String filter = null;
public String customFilter = null;
public int maxCustFilter = 0;
public int filterIndex = 0;
public String file = null;
public int maxFile = 0;
public String fileTitle = null;
public int maxFileTitle = 0;
public String initialDir = null;
public String title = null;
public int flags = 0;
public short fileOffset = 0;
public short fileExtension = 0;
public String defExt = null;
public IntPtr custData = IntPtr.Zero;
public IntPtr hook = IntPtr.Zero;
public String templateName = null;
public IntPtr reservedPtr = IntPtr.Zero;
public int reservedInt = 0;
public int flagsEx = 0;
}
[StructLayout(LayoutKind.Sequential, CharSet = CharSet.Auto)]
public class OpenFileDlg : ChinarFileDlog
{
}
public class OpenFileDialog
{
[DllImport("Comdlg32.dll", SetLastError = true, ThrowOnUnmappableChar = true, CharSet = CharSet.Auto)]
public static extern bool GetOpenFileName([In, Out] OpenFileDlg ofd);
}
public class SaveFileDialog
{
[DllImport("Comdlg32.dll", SetLastError = true, ThrowOnUnmappableChar = true, CharSet = CharSet.Auto)]
public static extern bool GetSaveFileName([In, Out] SaveFileDlg ofd);
}
[StructLayout(LayoutKind.Sequential, CharSet = CharSet.Auto)]
public class SaveFileDlg : ChinarFileDlog
{
}

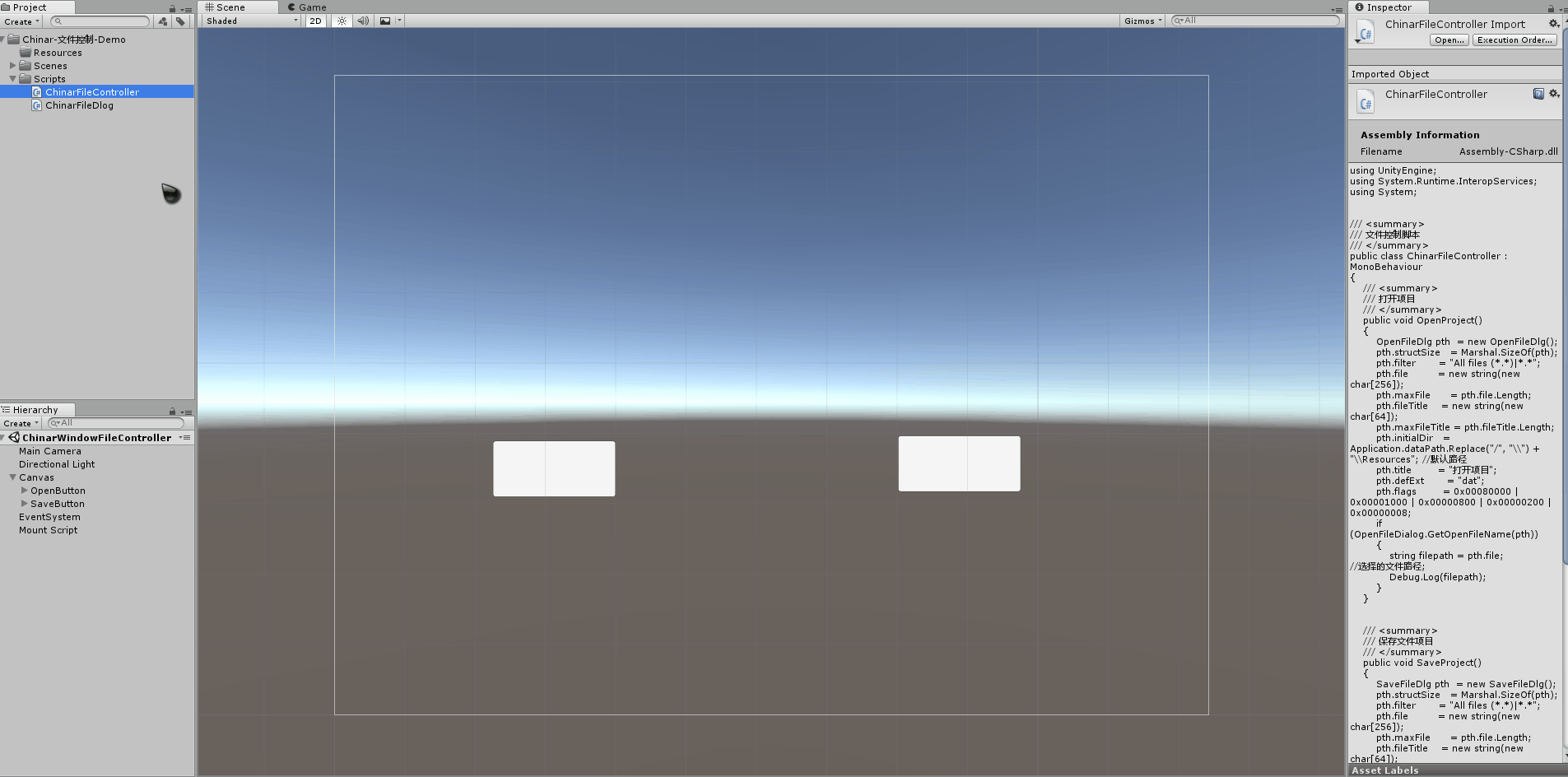

运行效果:
